Introduction

Electromagnetic induction water-cooled aluminum foil sealing machine is a new type of bottle sealing machine equipment. It is mainly used for sealing various types of bottles. It adopts sealing technology, composite material electromagnetic induction aluminum foil sealing mode, dual fans, dual radiators, internal circulating forced water cooling system and transistors The modular digital integrated circuit control system is a fully automatic online high-speed sealing machine and non-contact heating. It is suitable for sealing various plastic bottles, glass bottles and various composite plastic hoses. It is used in the medicine, food, wine industry, The most advanced technology for bottled sealing of tobacco, daily chemicals and agrochemical.

Features


Digital DSP + MOSFET mode precise control, new technology to ensure the system is stable and efficient; realize long-term uninterrupted operation.

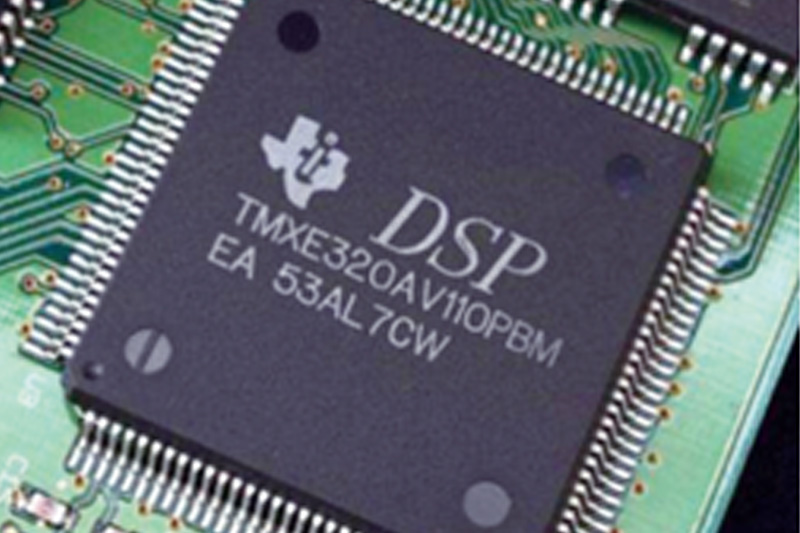

DSP digital chip, combined with advanced software design, can perform closed-loop calculation of current, voltage, frequency, etc. in real time, and control power output in real time.

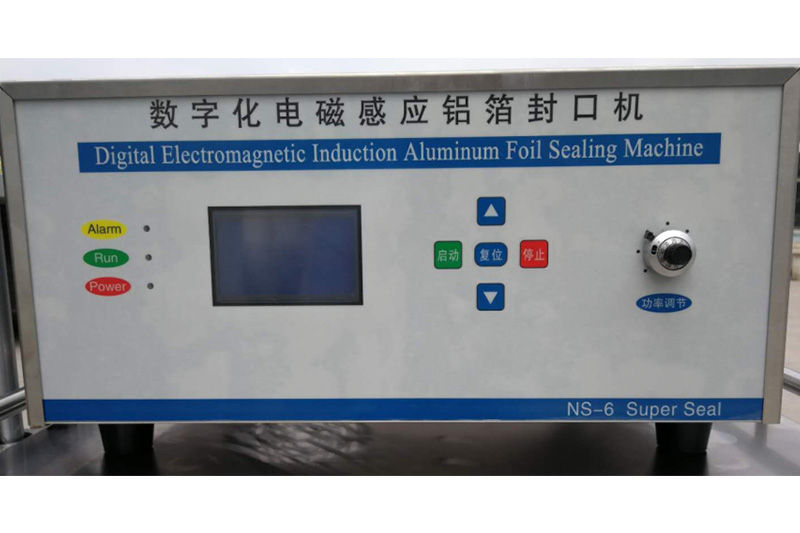

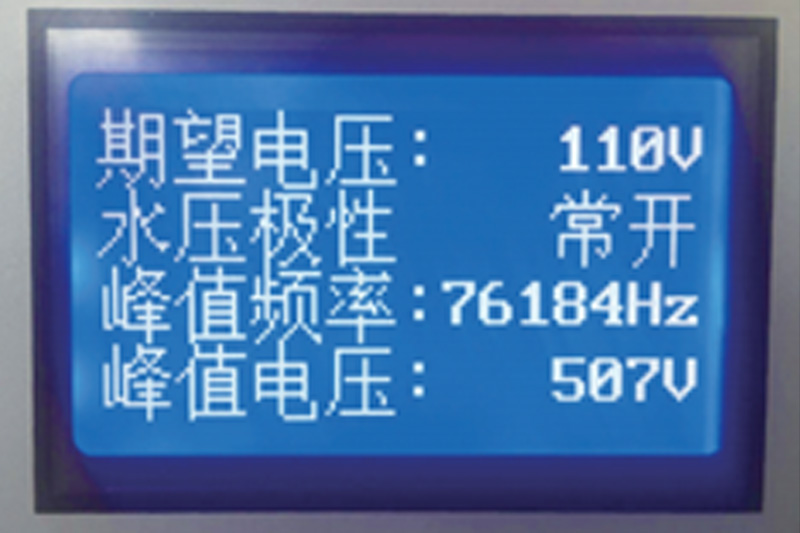

The LCD screen displays the working status, system parameters, and fault information in real time.

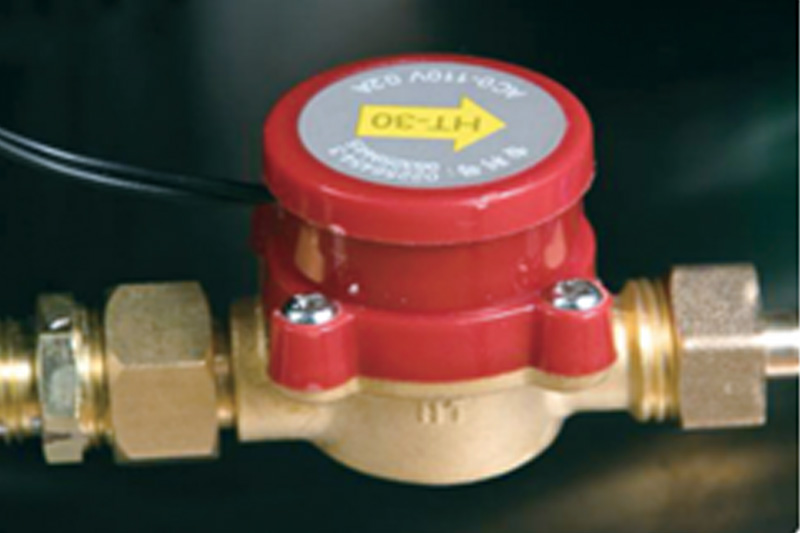

The water flow sensor and temperature sensor are connected to the DSP chip, and the DSP processor monitors the waterway system in real time to provide protection for the heat dissipation of the sensor head.

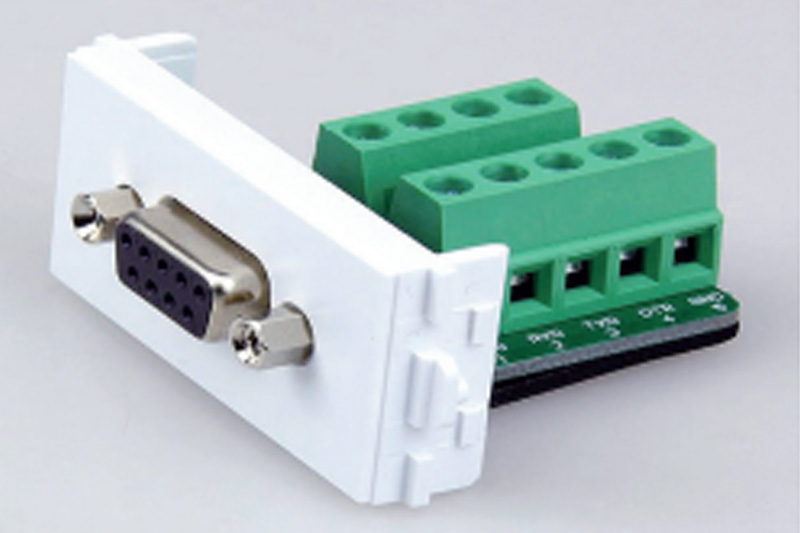

RS232 communication interface reserved, DSP chip program can be upgraded at any time.

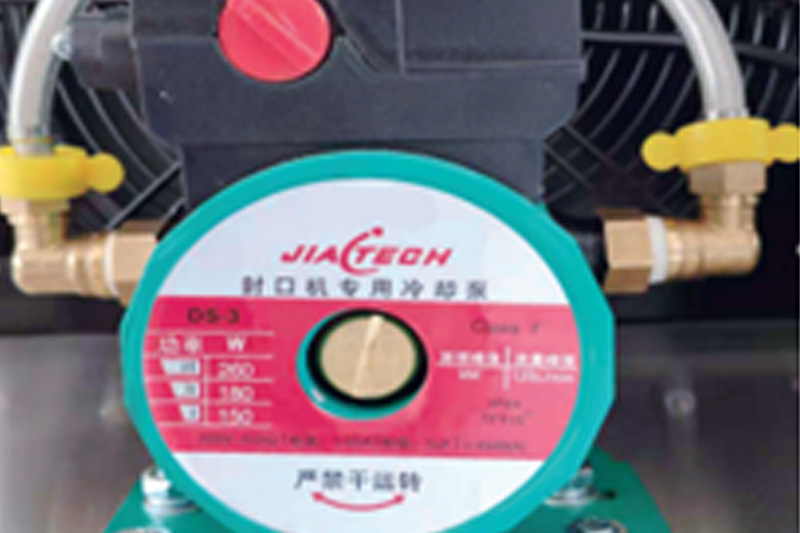

High-lift, silent sealer special cooling pump provides perfect heat dissipation for the heating head.


It adopts automatic frequency sweep technology to automatically match different types of sensor heads.

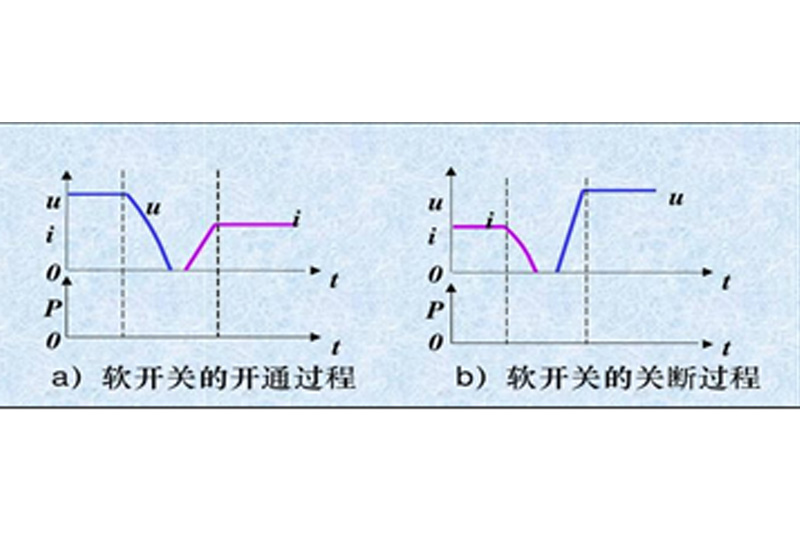

Soft switching technology is adopted to reduce power loss and improve energy efficiency.

Technical Parameter

Power 220V / 50Hz
Power adjustable
Frequency 60-90K
Sealing diameter 10-130mm
Sealing speed 1-60m / min
Equipment structure
Machine size 520 * 500 * 1100mm (length, width and height)
Host size 400 * 380 * 190 (length, width, height)
Machine weight 80Kg
Material 304 stainless steel chassis

Application

Cosmetics

  • Foundation Cream

  • Make Up Remover

  • Nail Varnish

  • Nail Varnish Remover

Toiletries

  • Shampoo

  • Conditioner

  • Liquid Soap

  • Bath & Shower Gel

  • Roll On Deodorant

  • Stick Deodorant

  • Toothpaste

Cosmetics

  • Fragrance

  • Perfume

  • Nail Varnish

  • Nail Varnish Remover

Hair Care

  • Shampoo

  • Conditioner

  • Hair Gel

  • Hair Wax

  • Hair Styling Products

  • Hair Dye

Our Advantages
  • In-depth Expertise
  • We Create Solutions
  • Committed to Customer Service
In-depth Expertise
Our extensive experience of liquid filling and container handling enables us to offer solutions to both simple and complex liquid packaging applications.
Our machines are flexible and adaptable, making them suitable for use in a wide range of applications.
As a result, our customers come from a very wide range of industries including toiletries, cosmetics, pharmaceuticals, food, drink, household products and chemicals.
We Create Solutions
In addition to designing and manufacturing our own liquid filling and capping equipment, we have a proven track record in providing full turnkey packaging lines. Our systems include capping, sealing, plugging, crimping, labelling, puck return and conveyoring.
Committed to Customer Service
We believe it isn’t just the quality of our machines that make our customers come back time and time again, but also our commitment to excellent customer service.
Our level of service is monitored for continual improvement and a senior Director of the company personally follows up all equipment deliveries to ensure customer satisfaction is achieved.
Jerry Packaging has a strong customer service ethos and strives for excellence because we know our machines are critical to our clients’ production and customers rely on us to deliver spare parts and technical support.
From your initial inquiry through to after-sales support, we aim to provide a service that is second to none.
