Capping Machine
JAC-40F Automatic Single Head ROPP Capping Machine
Contact Us
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
//www.jpacks.com/uploadfiles/128.1.164.122/webid666/source_water/202304/168256477769.jpg
Features and Main Parameters
Application
Our Advantages
Get A Quote

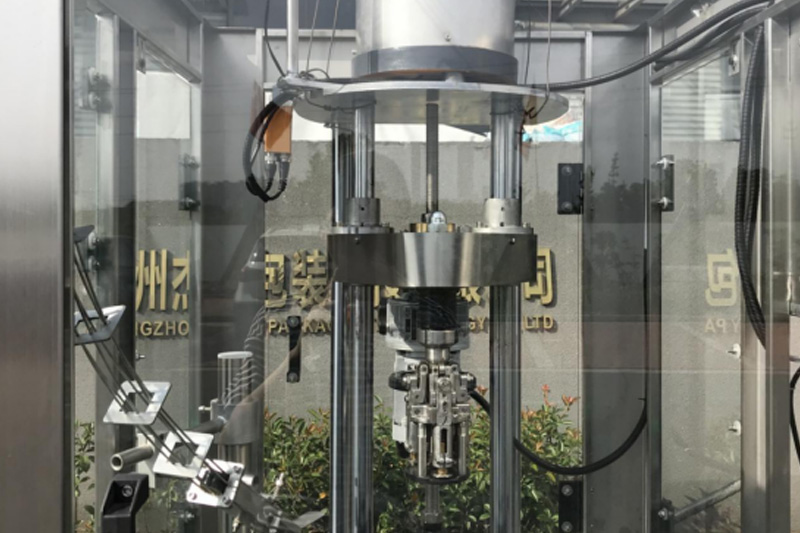

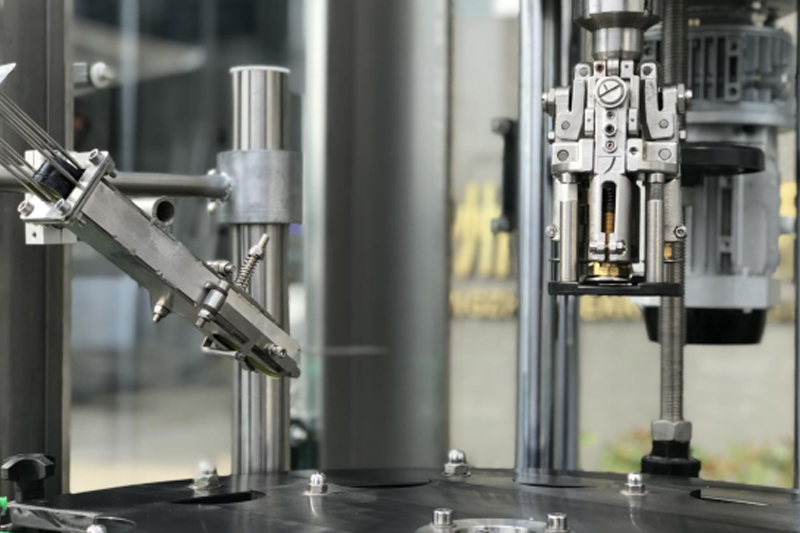

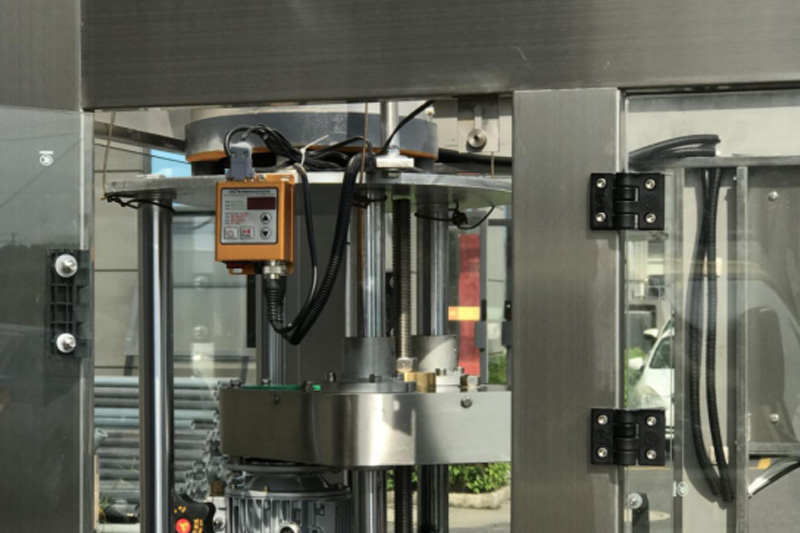

Capper features

Machine designed to place and form metal caps on a wide range of containers – enclosures.
Price includes one set of change of parts (star wheel, outer guide and cap delivery).
Bottle will pick up cap and the container will be indexed into position.
Maximum bottle diameter with 12 pocket star wheel: 4.25 in
Maximum bottle diameter with 6 pocket star wheel: 8.00 in
Automatic start and stop with presence or absence of containers.
Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills).
Ac motor with frequency drive speed control
Stainless steel electric enclosure.
Heavy duty 304 Stainless steel welded frame.
Stainless steel enclosure with polycarbonate windows and safety switches.

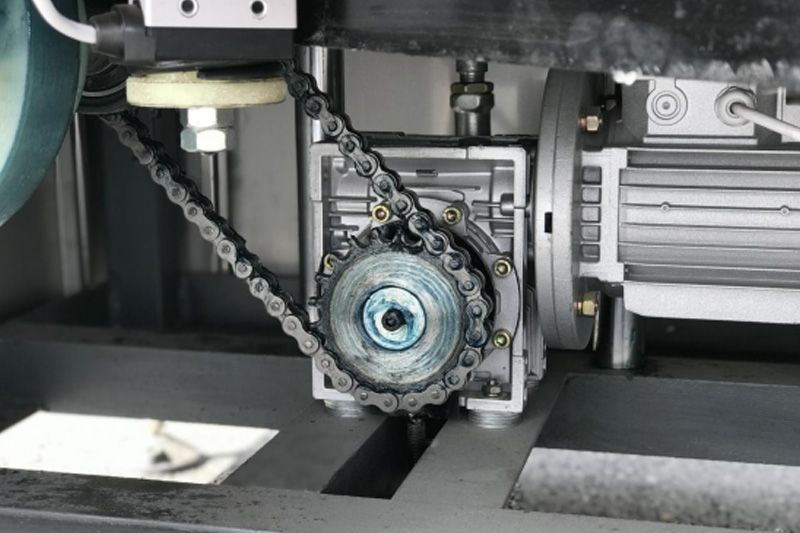

Gear driven transmission machine to avoid timing loss.
Complete height adjustment with bottle setting guide for quick changeovers.
Tool less changeovers for star wheels and most change parts.

Cap chute features

All contact parts in stainless steel.
Designed and tested for each cap to avoid jamming.
Includes cap demand sensor to start and stop the cap feeder.
Quick change over, since parts are pin guided so no tweaking is required.

Vibratory cap feeder features

Aluminum casting with polyurethane liner to minimizes cap marking-scratching
24 inch diameter feeding disc - ramp assembly.
Bad caps rejected mechanically, minimum air usage.
Cap by demand controlled by photoelectric sensor.
Bowl tooled for one model cap.
Adjustable vibration and speed control
Heavy duty extra heavy base for better vibration transmission.
Sorter mounted on machine, no need for independent height adjustment.

Electric and pneumatic requirements

380 Volts, 50/60Hz, 10 Amps.
5 CFM @ 80psi

Floor level cap feeder, features

4.5 Cubic feet stainless steel hopper.
8 inch wide belt.
Cleated belts, 6 inch spacing, 2 inch cleats.
L shape conveyor for vertical and horizontal transportation of caps.
Swivel to facilitate change over on centrifugal bowl.
Speed control.
Wired with bowl for shutoff by caps level.

Equipment Details

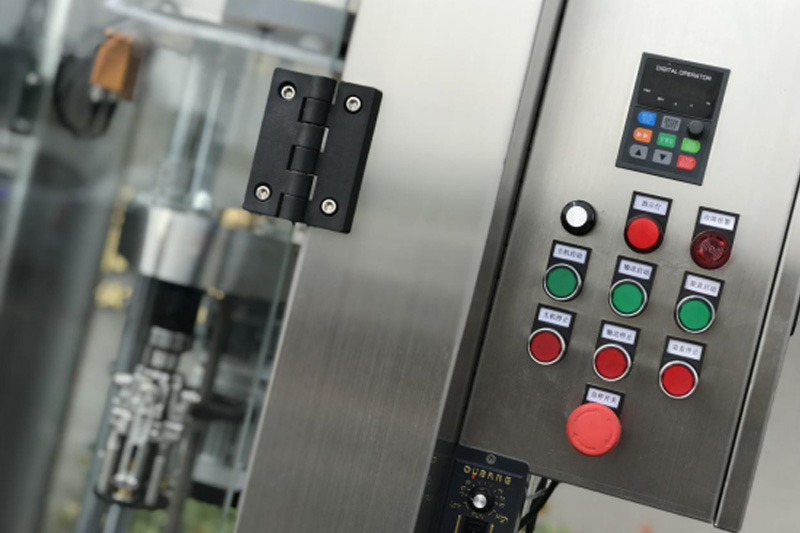

Electrical configuration

Inverter: Schneider & Siemens
Low voltage appliances: Schneider & Siemens

Application

Cosmetics

  • Foundation Cream

  • Make Up Remover

  • Nail Varnish

  • Nail Varnish Remover

Toiletries

  • Shampoo

  • Conditioner

  • Liquid Soap

  • Bath & Shower Gel

  • Roll On Deodorant

  • Stick Deodorant

  • Toothpaste

Cosmetics

  • Fragrance

  • Perfume

  • Nail Varnish

  • Nail Varnish Remover

Hair Care

  • Shampoo

  • Conditioner

  • Hair Gel

  • Hair Wax

  • Hair Styling Products

  • Hair Dye

Our Advantages
  • In-depth Expertise
  • We Create Solutions
  • Committed to Customer Service
In-depth Expertise
Our extensive experience of liquid filling and container handling enables us to offer solutions to both simple and complex liquid packaging applications.
Our machines are flexible and adaptable, making them suitable for use in a wide range of applications.
As a result, our customers come from a very wide range of industries including toiletries, cosmetics, pharmaceuticals, food, drink, household products and chemicals.
We Create Solutions
In addition to designing and manufacturing our own liquid filling and capping equipment, we have a proven track record in providing full turnkey packaging lines. Our systems include capping, sealing, plugging, crimping, labelling, puck return and conveyoring.
Committed to Customer Service
We believe it isn’t just the quality of our machines that make our customers come back time and time again, but also our commitment to excellent customer service.
Our level of service is monitored for continual improvement and a senior Director of the company personally follows up all equipment deliveries to ensure customer satisfaction is achieved.
Jerry Packaging has a strong customer service ethos and strives for excellence because we know our machines are critical to our clients’ production and customers rely on us to deliver spare parts and technical support.
From your initial inquiry through to after-sales support, we aim to provide a service that is second to none.
