View:353An overflow filling machine makes sure every bottle is filled to the same level. This helps all the products look the same on the shelf. You put the bottle under a nozzle. The filling machine uses a fill port and a return port. Extra liquid or foam goes back out through the return port. This stops bottles from getting too full. When fill levels are always the same, your products look nicer. Customers trust products that look neat and even.
Key Takeaways
Overflow filling machines make sure each bottle looks full. This helps products look nice and makes customers trust them.
These machines send extra liquid back to the tank. This lowers waste and keeps the area tidy.
Overflow filling machines work well for many things. You can use them for sauces, syrups, and foaming cleaners.
Cleaning and taking care of the machine often is very important. It keeps people safe and helps the machine work well.
Picking the best overflow filling machine takes some thought. You need to think about your product, how fast you work, and how much room you have.

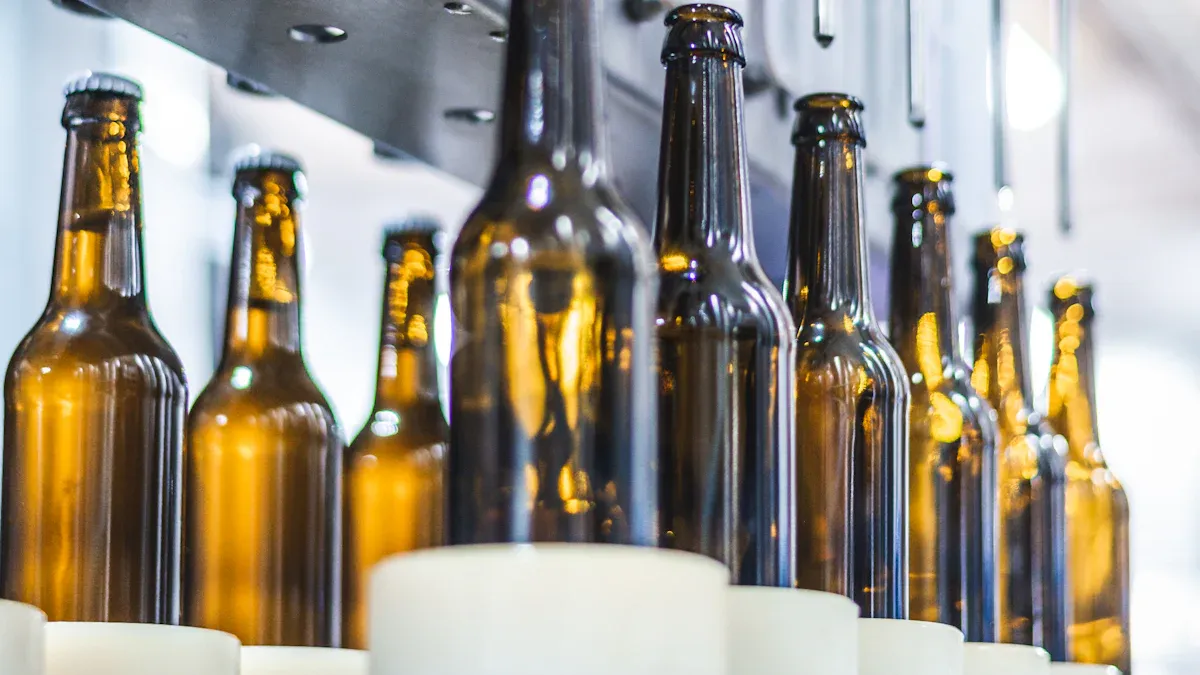

Overflow Filling Machine Overview
What Is an Overflow Filling Machine
You use an overflow filling machine when you want bottles to look the same. This machine fills each bottle to a set level. It has a nozzle with two parts. One part puts liquid into the bottle. The other part lets extra liquid or foam go back to a tank. This makes sure every bottle has liquid at the same height. It works even if bottles are a little different inside.
Overflow filling machines are not like other liquid filling machines. You can see the main differences in the table below:
| Feature | Overflow Filling Machines | Other Liquid Filling Machines |
|---|---|---|
| Filling Method | Uses a two-part nozzle to fill to a target height and recirculate excess | Typically fills by volume or weight |
| Result | Creates a uniform fill level across all containers | May vary based on container size and shape |
| Ideal For | Sauces, syrups, gels, foaming cleaners, chemicals | Various liquids, but not ideal for foamy or viscous products |
| Limitations | Not suitable for very viscous materials or large containers | Can handle a wider range of products |
You will find overflow filling machines best for sauces, syrups, gels, and cleaners that foam. These machines fill each bottle to the same level. It does not matter what shape or size is inside. Extra product goes back to the tank. This helps you save liquid.
Tip: If you want your products to look neat, use an overflow filling machine for your bottling.
Key Features and Design
When you look at overflow filling machines, you will see important features. These features help you get good results and keep you safe. Here is a table with some main parts and design features:
| Component/Feature | Description |
|---|---|
| Vent Tubes | Allow excess product to overflow, ensuring a consistent fill level. |
| Bottom-Up Filling Technique | Fills containers from the bottom to minimize foaming and spillage. |
| Temperature Control System | Maintains product temperature for optimal filling conditions. |
Modern overflow filling machines have many safety features. These features protect you and your team. Some common safety features are:
Emergency stop buttons for quick shutdowns.
Enclosed filling stations to prevent spills and accidents.
Overload sensors that stop the machine if something goes wrong.
Proximity sensors to detect obstacles and avoid collisions.
Pressure and liquid sensors to monitor safe operation.
Insulated wiring and fire-resistant materials for extra safety.
Maintenance reminders and alarms for low liquid or high pressure.
You can trust these machines to keep your workspace safe. They fill bottles to the perfect level every time.

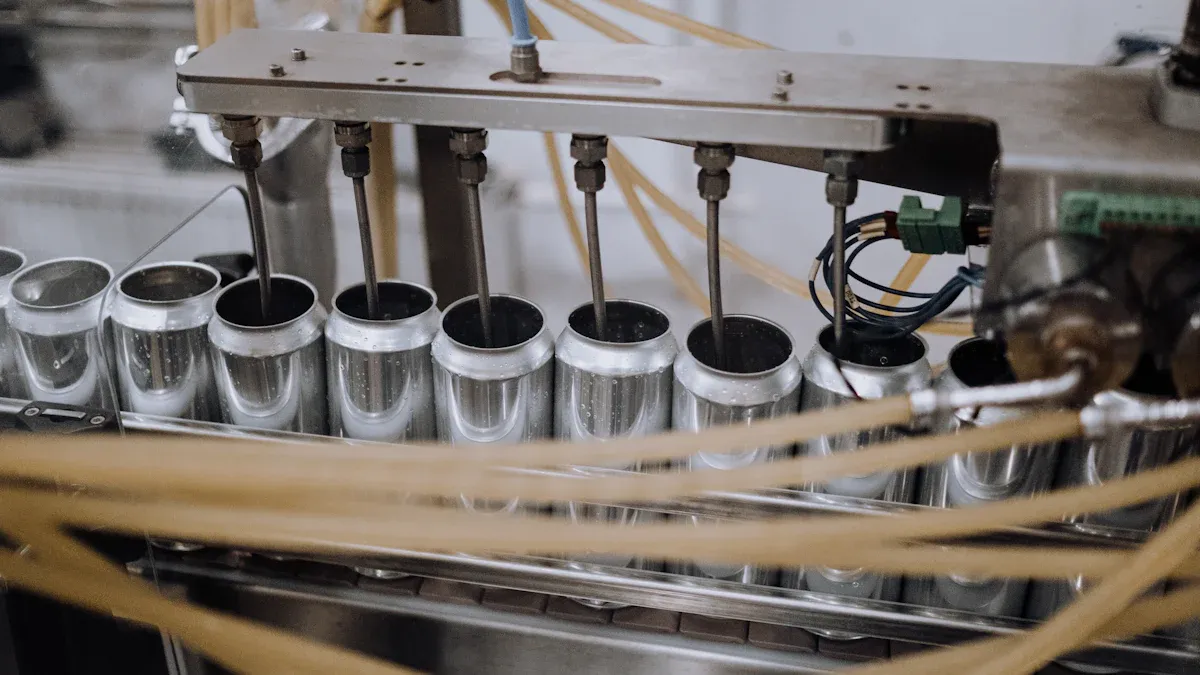

How Overflow Filling Machines Work
Filling Process Steps
overflow filling machines fill bottles in a certain order. They use a fill to level system. This keeps every bottle looking the same. Here are the main steps you will see during filling:
You put the bottle under the nozzle. The nozzle goes inside the bottle and makes a tight seal.
The filling machine pushes liquid into the bottle through the nozzle’s inner tube. The pump takes product from a big tank and keeps the flow steady.
As the bottle fills, the liquid rises to the set level. When it gets there, extra product and foam move into the outer tube.
The extra liquid goes back to the supply tank. This stops spills and keeps the area clean.
The control system decides how long the pinch bar stays open. It checks each bottle to make sure it gets the right amount. This gives you the same results every time.
Note: The fill port lets liquid go into the bottle. The return port sends extra product back to the tank. This design helps stop spills and keeps bottles neat.
Overflow Mechanism Explained
overflow filling machines use a special nozzle and return system. This helps handle extra liquid and foam. The nozzle goes into the bottle and seals the top. This seal lets the machine fill to the right level, even if bottles are a little different inside.
Operators can change the nozzle with spacers and springs. You set the fill level for each bottle size. The nozzle springs must be tight enough to stop leaks and damage. The control system helps you watch the process and make changes fast.
Here is a table that shows how the overflow mechanism works:
| Mechanism | Description |
|---|---|
| Continuous Flow | The machine keeps liquid moving until the bottle is full. |
| Return of Excess | Extra liquid and foam go back to the tank, so you waste less and avoid spills. |
| Consistency | Every bottle gets filled to the same height, even with foamy products. |
You can use overflow filling machines in inline packaging lines. These machines use special nozzles to fill bottles fast and accurately. The system controls the flow and checks each step. This way, you get good results with every batch.
The overflow filler fills bottles to a certain level, not by volume.
The nozzle makes a seal on the bottle opening for better filling.
Extra product and foam leave through the return port, so your area stays clean.
Overflow filling machines let you control the filling process. You stop spills and keep your products looking nice. Watching and controlling the process helps you keep quality and safety in your production line.
Advantages of Overflow Filling Machines
Consistent Fill Levels
You want all bottles to look the same on the shelf. overflow filling machines help you do this with a fill to level system. These machines use special overflow fillers to control how much liquid goes in. Each bottle fills up to a set line. Extra liquid goes back to the tank, so bottles do not spill or get too full. This way is more exact than gravity or piston fillers. You can trust the machine to keep every bottle at the same height, even when making lots of bottles.
Overflow filling machines give you exact fills, so every bottle matches.
The machine fills bottles to the same line and sends extra liquid back.
Overflow technology is best when the look of the fill matters, like in clear bottles.
Many companies use this method to make products look better and worth more.
Visual Uniformity
Overflow filling machines help every bottle look just right. The machine fills each bottle to the same line. If there is too much liquid, it goes back to the tank. This keeps bottles neat and stops spills. Visual uniformity is important for products in clear bottles, like drinks or makeup.
The machine fills each bottle to a certain line.
Extra liquid goes back to the tank, so bottles do not get too full.
This is important for companies that care about how their products look.
Tip: When your products look the same, customers trust your brand more.
Versatility and Reliability
overflow filling machines work with many kinds of products. You can use them for thin liquids, foaming cleaners, or some gels. The closed-loop recirculation system helps you waste less and makes cleaning easier. This design helps you save product and work faster. You get good results, even when making lots of bottles. The machine keeps things safe by stopping spills and keeping your area clean. You can count on these machines for control and accuracy, which means less waste and more money.
Note: Getting the right fill and wasting less helps you keep quality high and customers happy.
Types of Overflow Filling Machines
Semi-Automatic Models
Semi-automatic overflow fillers give you more control. You put each bottle in place by hand. You start the machine with a button or foot pedal. These machines are good for small or medium companies. You can set how much liquid goes in each bottle. You watch every step, so you waste less and stay safe.
Here is a table that shows how fast each machine works:
| Type of Machine | Throughput Characteristics |
|---|---|
| Semi-Automatic | Good for small or medium companies; needs people to work; may not keep up if you need to fill many bottles. |
| Automatic | Works fast and fills many bottles; does not need much help from people; always fills at the same speed. |
Semi-automatic overflow fillers cost less and give you more control. They are best for jobs that do not need to go very fast. You can use them for different bottle sizes and still get good results.
Automatic Systems
Automatic overflow filling machines help you work faster. These machines move bottles on a conveyor. They fill bottles without stopping. You do not have to touch the bottles. Sensors and controls keep every bottle filled to the same level. This saves you time and keeps things moving.
Automatic systems have many features for safety and accuracy. Here are some features you might see:
| Feature | Description |
|---|---|
| PLC with touch screen controls | Easy to use and lets you control the filling process. |
| Vision systems | Stops jams and spills by checking bottles as they move. |
| No bottle, no fill system | Only fills when bottles are in place, so nothing spills. |
| Overflow filling nozzle | Fills every bottle to the same level and sends extra liquid back. |
| Advanced indexing | Keeps bottles moving and filling without you doing anything. |
| Consistent level filling | Makes sure every bottle has the same amount, even if bottles are different inside. |
| Unique filling nozzle | Sends extra liquid back so every bottle looks the same. |
| Overflow port | Sends extra product back to the tank, so filling is clean. |
Automatic overflow filling machines can run for a long time. You waste less and fill bottles more exactly. These machines help keep your work area safe and neat.
Tabletop Units
Tabletop overflow filling machines are good for small jobs. You can put them on a table and start filling bottles right away. They do not take up much space and are easy to use. You do not need a big room or special power. Tabletop units fill bottles to the right level and do it well.
Here are some details about space and power for tabletop units:
| Specification | Details |
|---|---|
| Air-Electrical | 110V, 1 Phase, 60 Cycle |
| Air Requirement | 1-2 cu/ft per min. 90psi |
| Base Crated Weight | 850 lbs |
| Crated Dimension | 8’x4’x7’4” W |
Tabletop filling machines are made for small spaces.
You can add them to your work area with just a table.
Tabletop overflow filling machines are good for short jobs or special products. You get good results without spending a lot of money. These machines help keep your space tidy and safe.
Applications of Overflow Filling Machines
Food and Beverage
overflow filling machines are used in many food and drink factories. They help fill each bottle to the same level. This makes products look neat and professional. You can use these machines for many kinds of liquids. Some common things you might fill are:
Specialty syrups
Carbonated drinks
Craft brews
Edible oils
These machines are found in the beverage and edible oil industries. When working with food, you must follow strict hygiene rules. Cleaning the machines often keeps bottles safe for people. Good sanitation stops germs from getting into products. The table below shows some important hygiene standards:
| Evidence | Description |
|---|---|
| Regulatory compliance | Machines must follow FDA rules for food safety. |
| Cleaning features | Easy cleaning and validation help you meet these standards. |
Tip: Clean your overflow filling machine often. This keeps your production safe and running well.
Cosmetics and Personal Care
Overflow filling machines fill bottles with lotions, shampoos, and gels. They work best with liquids that are not too thick or thin. Automatic pressure overflow fillers use special nozzles. These nozzles fill each bottle to the same level. This makes your products look nice on store shelves. You also get less foam and fewer drips, so you waste less. When filling bottles for cosmetics, you want every bottle to look perfect. Overflow filling machines help you do this.
Household and Industrial Products
You can use overflow filling machines for cleaners, detergents, and some chemicals. These machines fill each bottle to the right level, even if the liquid foams. They help keep your work area clean and stop spills. Overflow filling machines help you work faster on your production line. You waste less and fill more bottles in less time. When you need to fill bottles with different liquids, these machines give you good results.
Note: Overflow filling machines help you save time and money. They do this by reducing waste and making liquid packaging more efficient.
Choosing an Overflow Filling Machine
Compatibility and Integration
When picking an overflow filling machine, check if it fits your line. Make sure you have enough space for the machine. Think about how fast you want to fill bottles. Look at the bottles and caps you use now. The machine should work with your products. It should help you reach your goals. Pick a machine that can grow with your business.
| Factor | Description |
|---|---|
| Physical Space | Make sure the machine fits in your workspace. |
| Required Efficiency | Choose a machine that meets your speed and output needs. |
| Products and Caps | Check if the machine works with your bottles and caps. |
| Accuracy & Precision | The machine should fill each bottle to the right level. |
| Throughput Capacity | Pick a machine that can handle your production volume. |
| Ease of Integration | The machine should work well with your other equipment. |
| Flexibility & Scalability | Look for a machine that can adjust to new products or sizes. |
| Compliance & Certifications | Make sure the machine meets industry rules. |
Cleaning and Maintenance
Keeping your overflow filling machine clean is important. Clean it every day to stop waste and keep products safe. Once a month, take the machine apart and check for broken parts. Change seals and nozzles every 6 to 12 months. Calibrate sensors often so bottles fill to the right level.
Clean the machine every day.
Deep clean and check parts once a month.
Change old parts on time.
Calibrate sensors to keep fills right.
Tip: Cleaning and maintenance help your machine last longer and work better.
Automation Needs
Think about how much you want to automate your work. If you fill lots of bottles, an automatic machine saves time. For small jobs, a semi-automatic or tabletop model may be best. Pick the right machine for your needs.
Support and Service
Good support helps your machine work well. Find suppliers who give training and easy guides. Some companies have help by phone or online all day. You might get an engineer to visit for repairs. Good support helps you fix problems fast and keeps your work going.
| Support Feature | Description |
|---|---|
| Technical Support | Help available by phone, email, or chat anytime. |
| Training | Learn how to use and maintain your machine. |
| On-site Service | Engineers can visit your site for repairs or upgrades. |
| Documentation | Manuals and videos guide you step by step. |
Note: Good support and service help you avoid problems and keep your overflow filling machine working well.
You gain many benefits when you use an overflow filling machine. The table below shows why many choose this equipment:
| Benefit | Description |
|---|---|
| Precise Fill Levels | Every bottle matches for a neat look. |
| Less Waste | Extra liquid returns to the tank, saving product. |
| Handles Foam | Fills even foamy liquids with ease. |
Before you buy, review your product needs and test the machine with your liquid. Ask suppliers about fill type, speed, and cleaning. A quick demo helps you pick the best fit.
FAQ
How do you adjust the fill level on an overflow filling machine?
You can change the fill level by moving the nozzle up or down. Some machines use spacers to help set the height. Most machines make this easy to do. Always look at your manual for the right steps.
Can you use overflow filling machines with thick or chunky liquids?
Overflow filling machines work best with thin or medium liquids. Thick or chunky liquids can block the nozzles. If you have thick or chunky products, use a piston or pump filler instead.
What types of bottles work with overflow filling machines?
You can use many shapes and sizes of bottles. These machines work with glass, plastic, and some special bottles. Always test your bottle before you start making lots of products.
How do you clean an overflow filling machine?
Tip: Clean your machine every day with warm water or cleaner. Take off the nozzles and rinse them well. Look for any leftover product. Cleaning often keeps your machine safe and working right.
